Jutland Truck Body Install Hardware Kit for 60" CA Chassis
Built for commercial-grade applications, this Jutland Install Kit is designed for mounting truck bodies to 60" CA (cab-to-axle) chassis setups. Whether you're installing a flatbed or a service body on a chassis, this kit provides the essential hardware to ensure structural integrity and dependable performance.
Perfect for dealers and trained mechanics—this kit ensures you get the install done right, the first time.
Why Choose This Jutland Install Kit?
- Designed for 60" CA chassis configurations
- Includes corrosion-resistant grade 8 hardware
- Ideal for flatbeds and service bodies
- Designed for strength, safety, and long-term durability
Kit Includes:
- High-strength bolts (Grade 8), washers, nuts
- Hardware needed for commercial truck chassis mounting
Specifications:
- Application: 60" CA Chassis – Flatbed or Service Body Installs
Part Number: 90-01431
Additional Requirements Disclaimer:
If installing a service body, an additional bolt kit is required.
- 90-01680 – Service Body Install Additional Bolts Kit

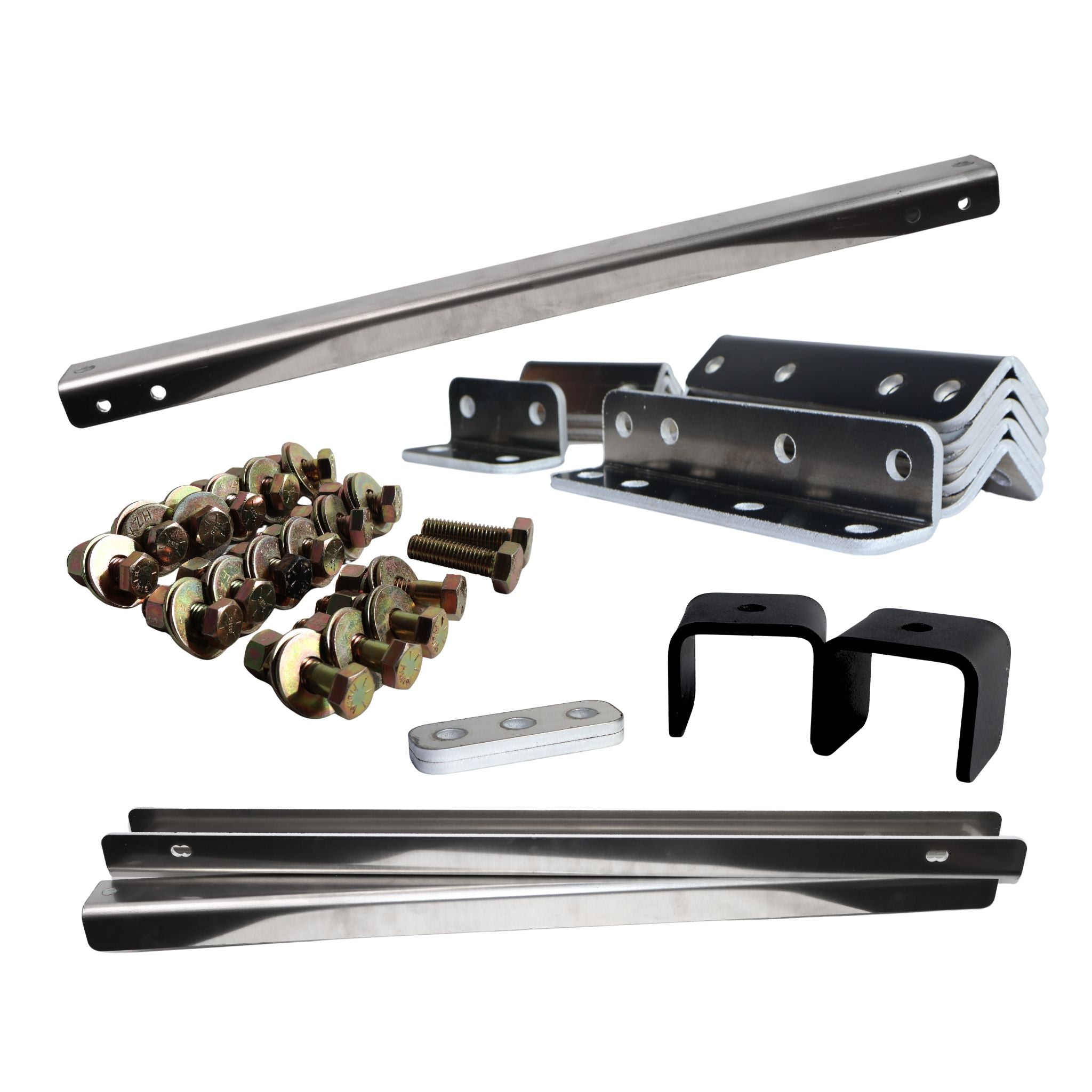

Full Kit Contents:

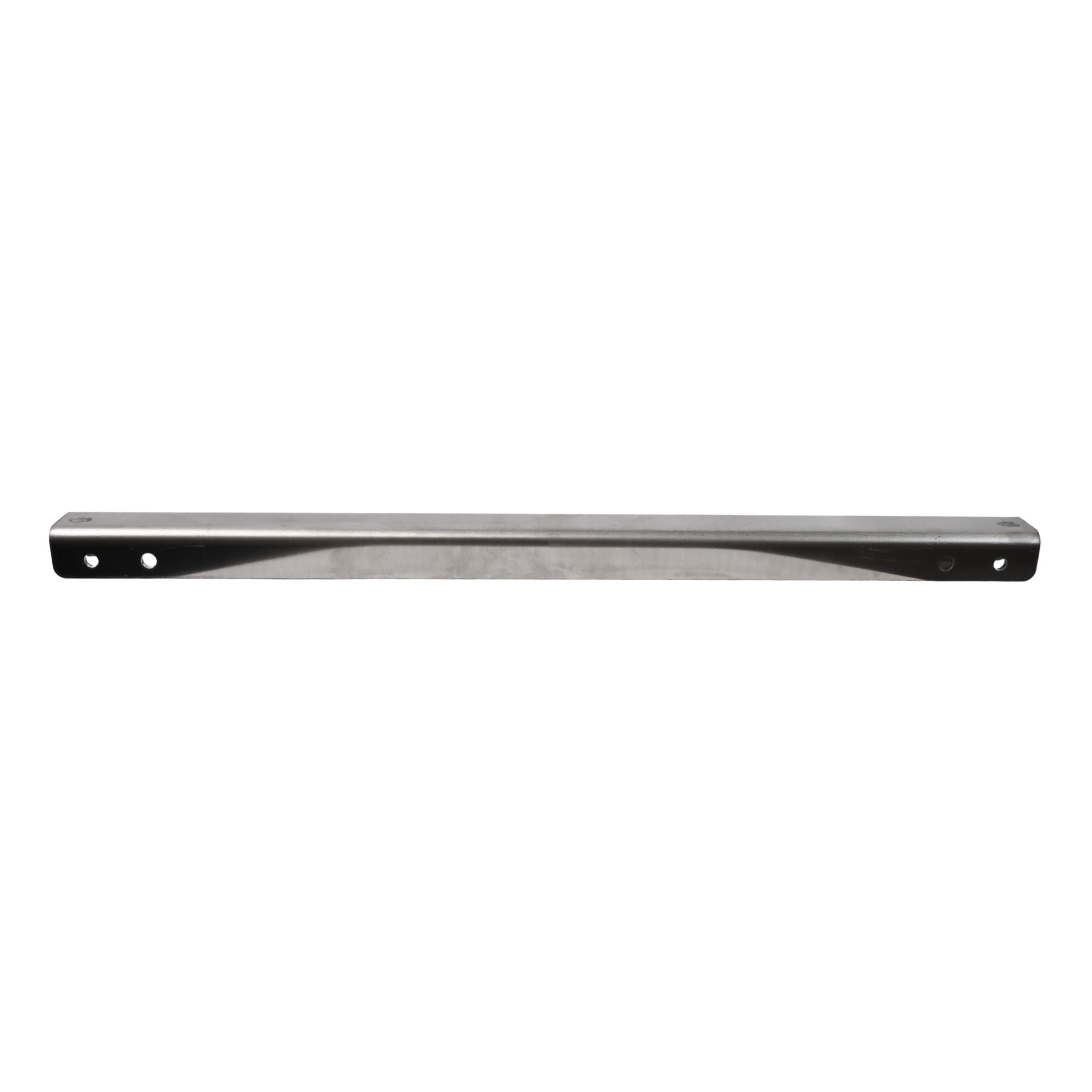

(1) 80-04751 – AL, CHASSIS FRONT FORMED XMBR, 1/4" X 2.75" X 38.63"

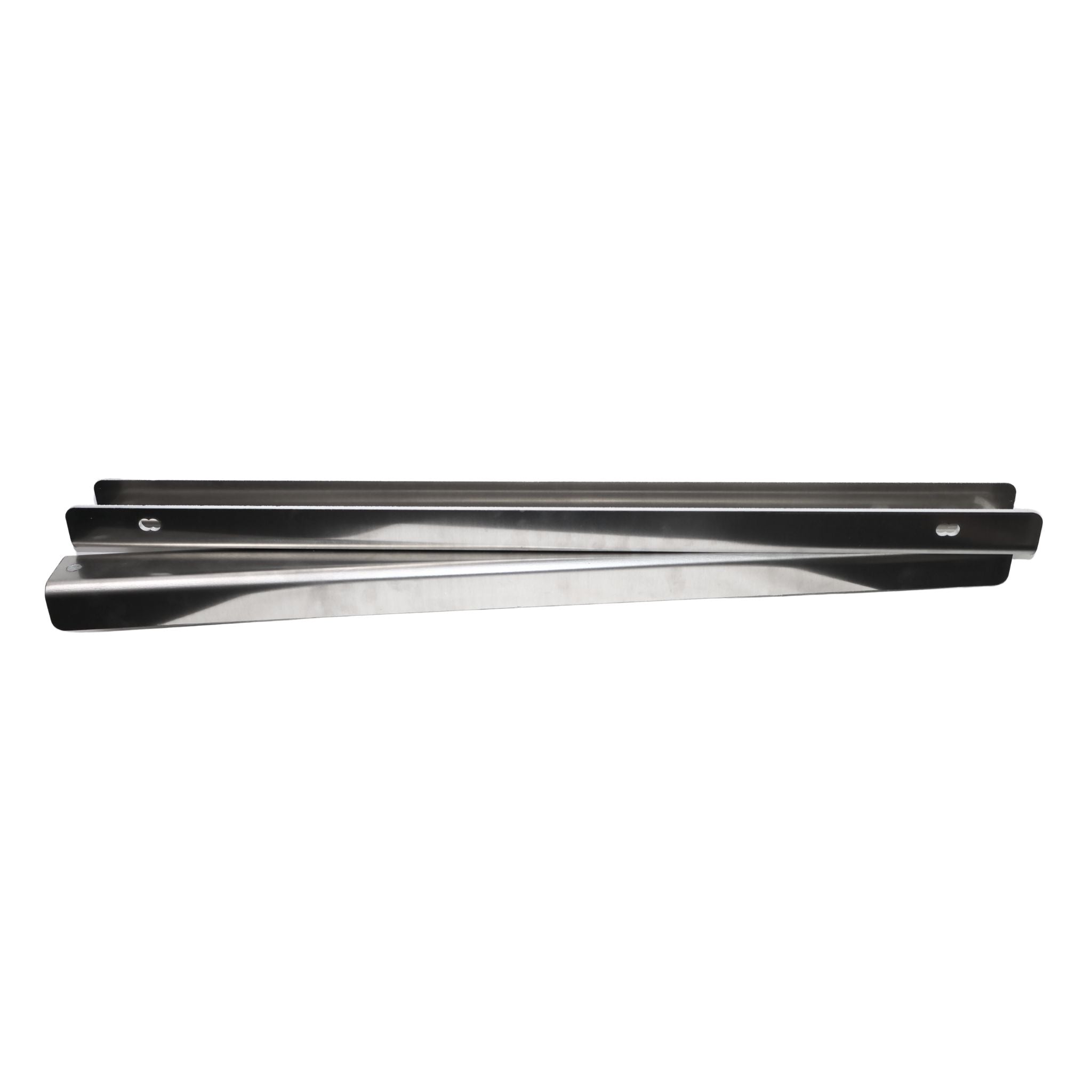

(2) 80-04752 – AL, CHASSIS MIDDLE FORMED XMBR, 1/4" X 3" X 38.13"
(2) 80-04753 – AL, CHASSIS FRONT SPACER PLT, 1/4" X 1.5" X 4.19"
(2) 80-04754 – STL, CHASSIS REAR SPACER CHNL, 1/4" X 2.5" X 3"

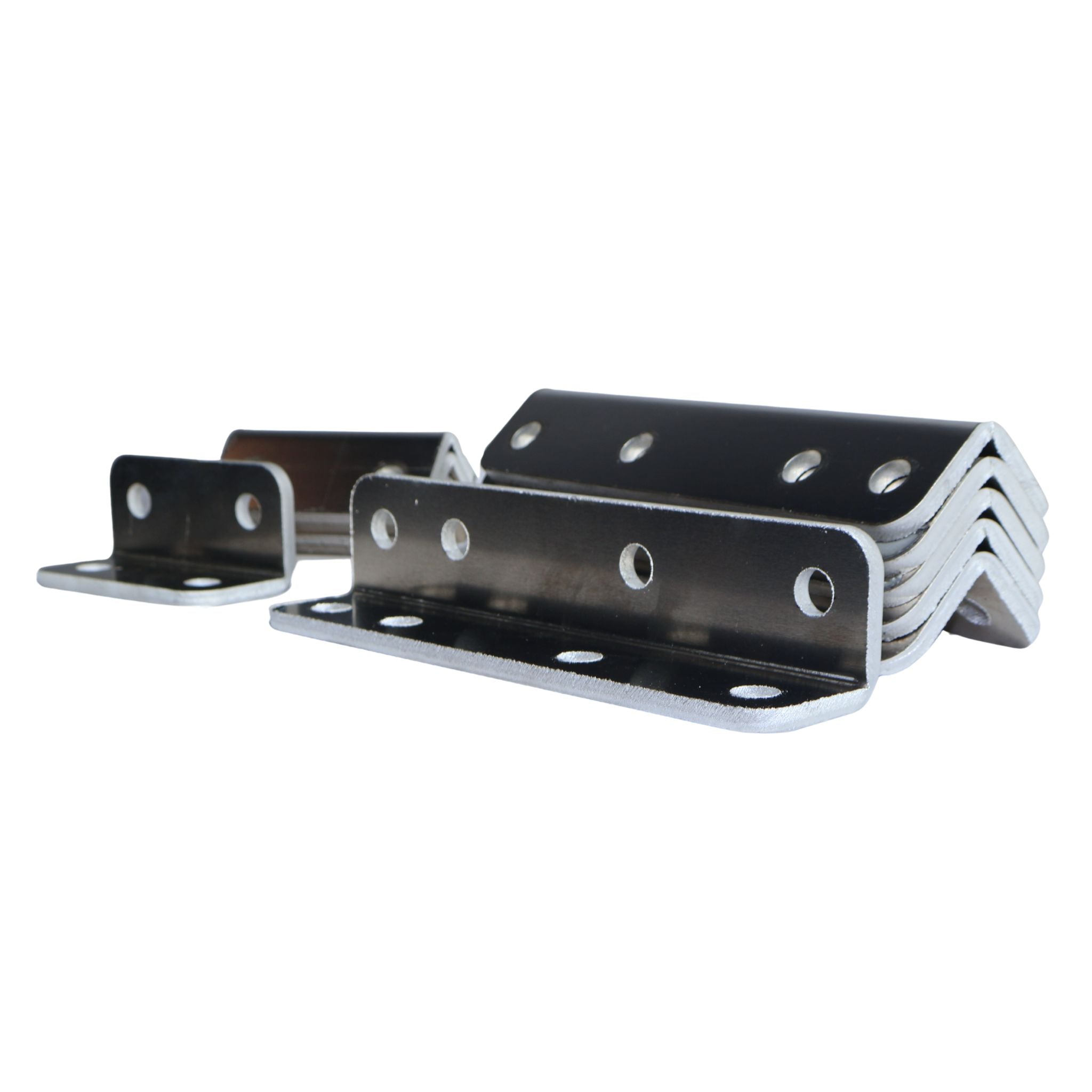

(4) 80-04077 – AL, INSTALL ANGLE BRKT, 1/4" X 2" X 2" X 4.19"
(3) 80-04788 – AL, INSTALL ANGLE BRKT, 1/4" X 2" X 2" X 9", W/ NOTCH DS
(3) 80-04789 – AL, INSTALL ANGLE BRKT, 1/4" X 2" X 2" X 9", W/ NOTCH PS

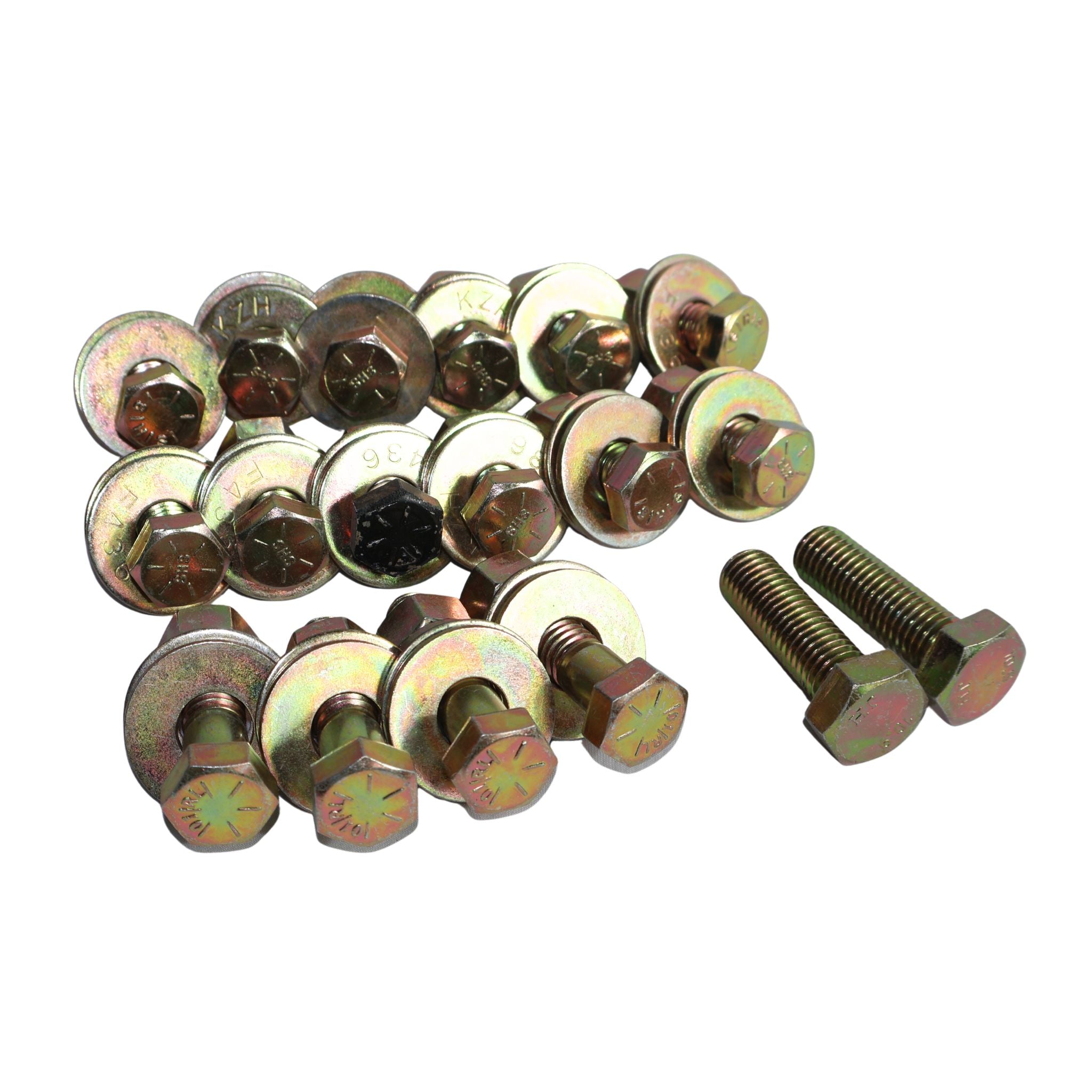

(24) 10-00016-01 – 1/2-13 X 1 1/2 HEX BOLT, GRADE 8, YELLOW ZINC
(4) 10-00016-02 – 1/2-13 X 2 HEX BOLT, GRADE 8, YELLOW ZINC
(52) 10-00005-01 – 1/2" FLAT WASHER, ZINC FINISH, STEEL
(26) 10-00006-01 – 1/2" LOCK WASHER
(26) 10-00009-01 – 1/2-13 HEX NUT (COARSE)
(2) 10-01978 – M14-2 X 45MM HEX BOLT, GRADE 10.9, YELLOW ZINC
