Jutland Truck Body Install Hardware Kit for Pickup
This Jutland Install Hardware Kit is engineered for mounting truck bodies to pickup platforms. Whether you're converting a standard pickup into a flatbed or equipping it with a service body, this kit provides the premium hardware needed for a secure, long-lasting installation.
Perfect for dealers and trained mechanics—this kit ensures you get the install done right, the first time.
Why Choose This Jutland Install Kit?
- Tailored for pickup delete installs
- Includes corrosion-resistant grade 8 hardware
- Ideal for flatbeds and service bodies
- Designed for strength, safety, and long-term durability
Kit Includes:
- High-strength bolts (Grade 8), washers, nuts
- Hardware needed for standard body-to-pickup mounting
Specifications:
- Application: Pickup – Flatbed or Service Body Installs
Part Number: 90-01430
Additional Requirements Disclaimer:
If installing a service body, an additional bolt kit is required.
- 90-01680 – Service Body Install Additional Bolts Kit

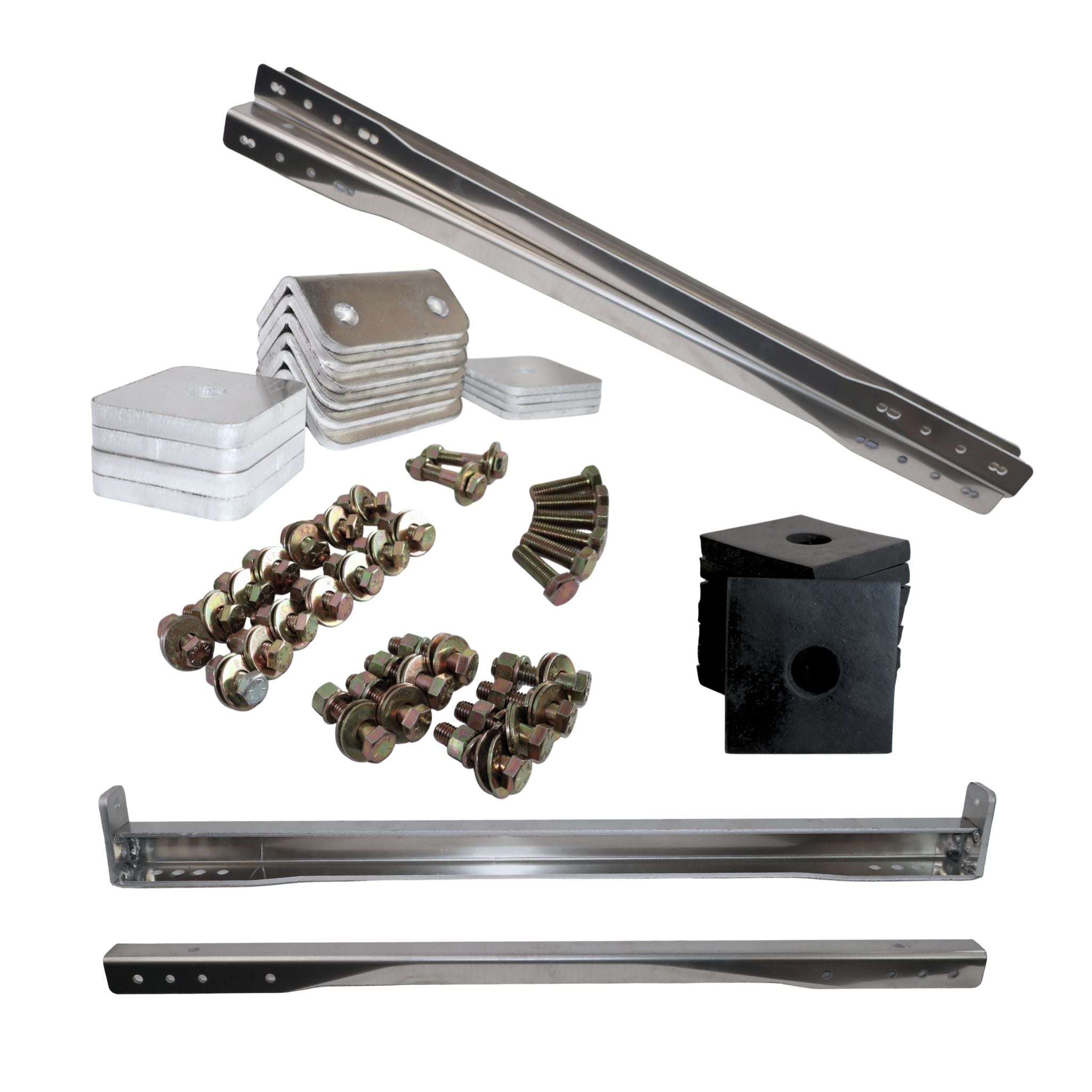

Full Kit Contents:

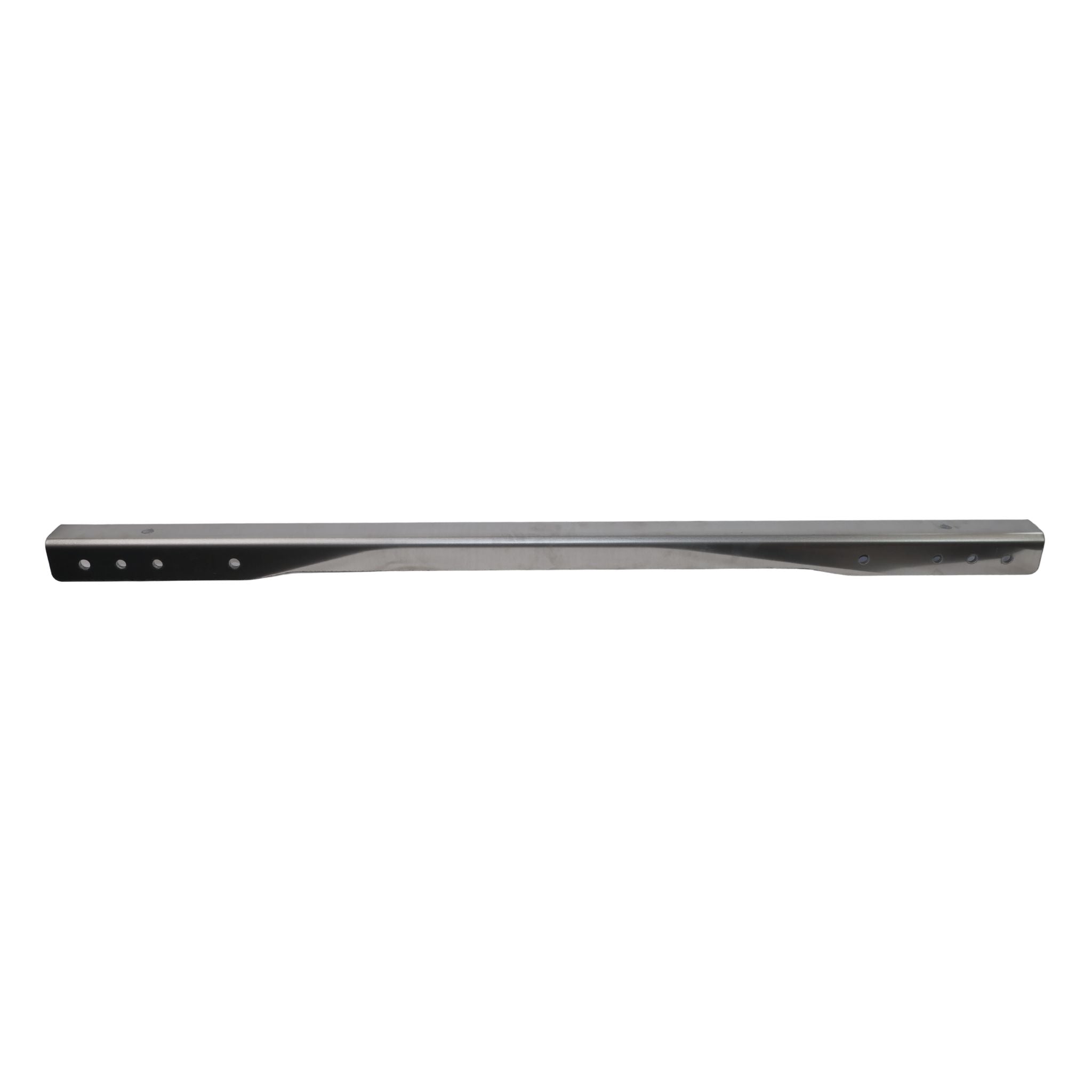

(1) 80-04741 – AL, PICKUP FRONT FORMED XMBR, 1/4" X 2.56" X 55"

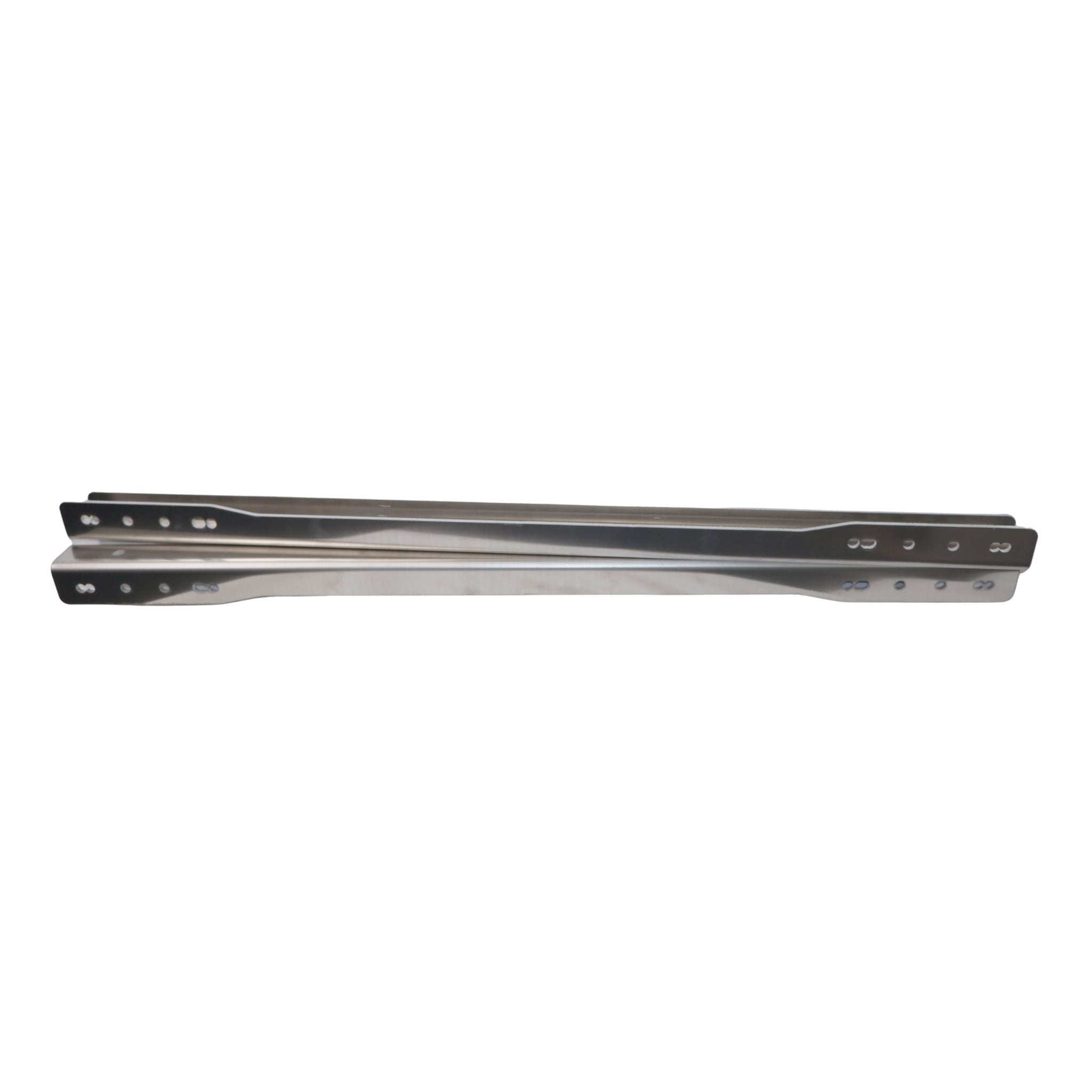

(2) 80-04742 – AL, PICKUP MIDDLE FORMED XMBR, 1/4" X 2.75" X 51"

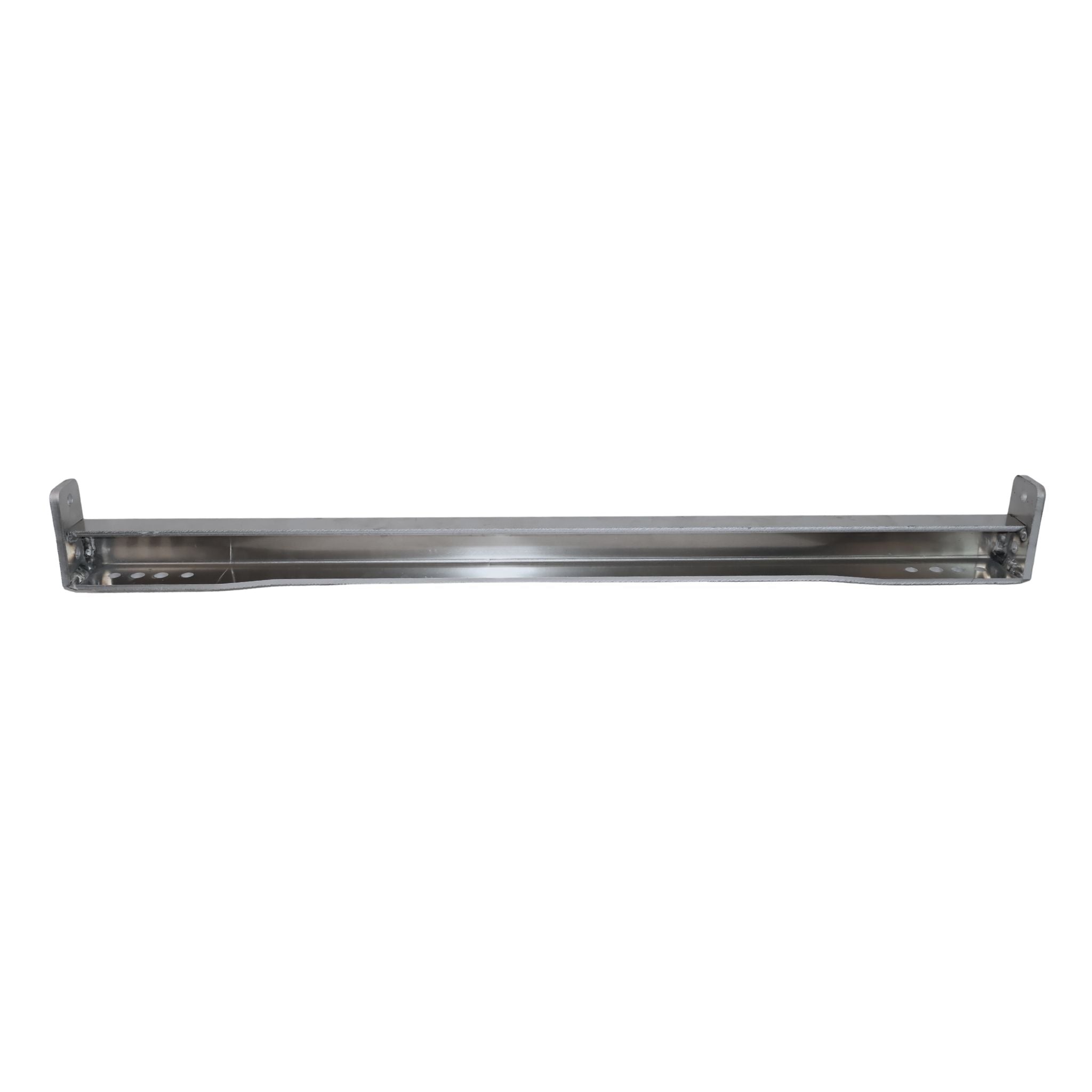

(1) 90-01696 – PICKUP REAR FORMED XMBR WLDMT

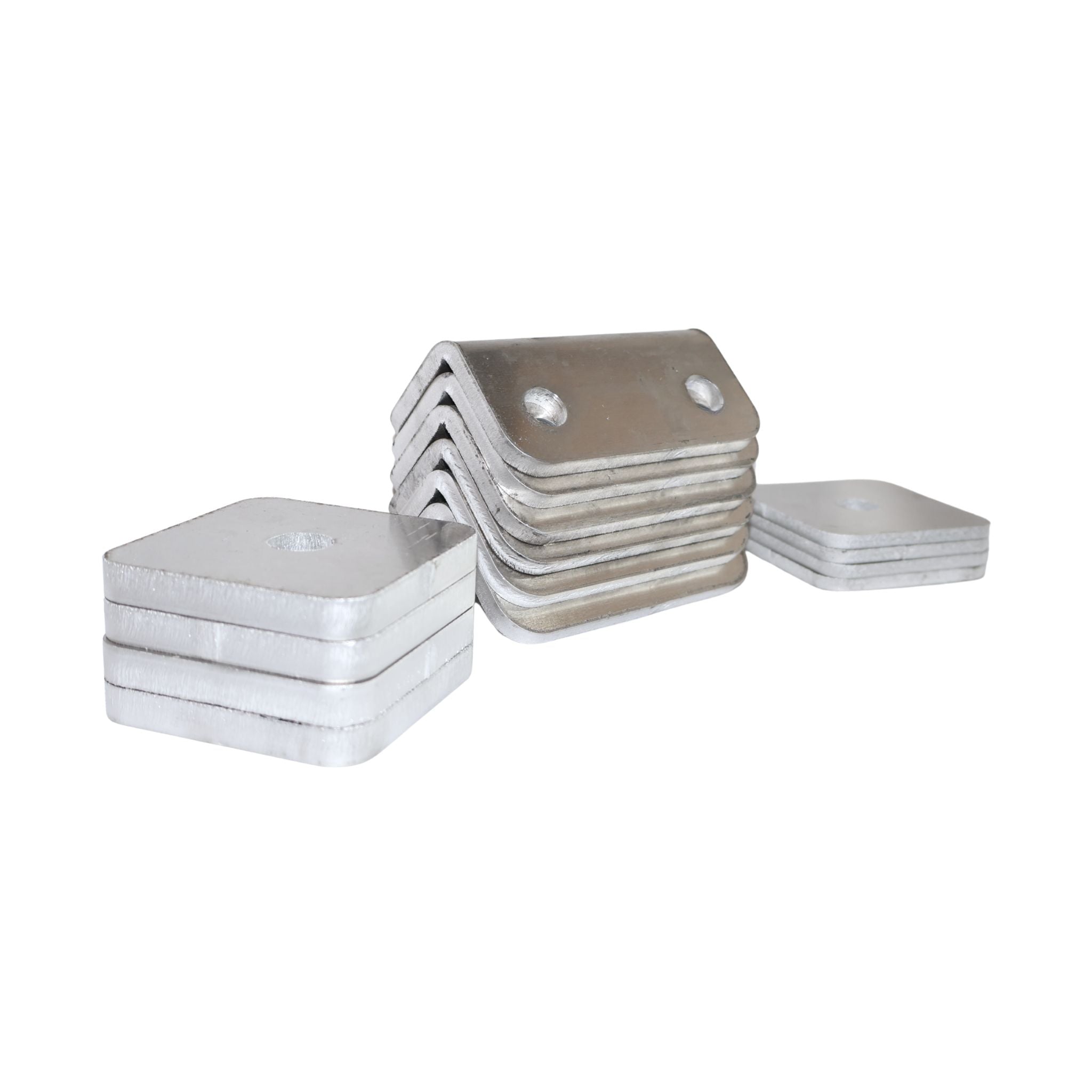

(6) 80-04077 – AL, INSTALL ANGLE BRKT, 1/4" X 2" X 2" X 4.19"
(4) 80-04745 – AL, SPACER PLT, 3/16" X 2.75" X 2.75", W/ .63" DIA HOLE
(4) 80-04746 – AL, SPACER PLT, 3/8" X 2.75" X 2.75", W/ .63" DIA HOLE

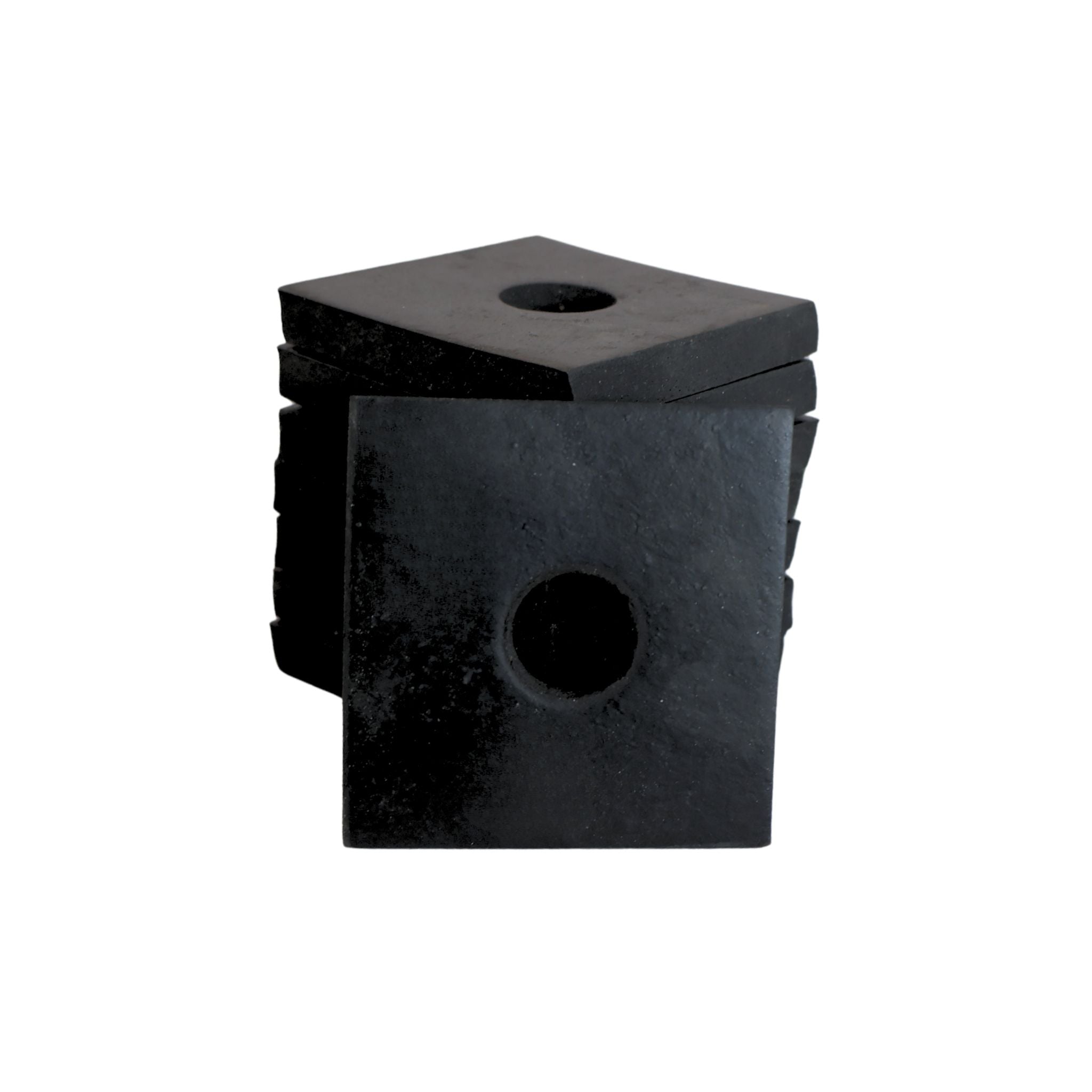

(8) 80-04747 – SBR, RUBBER SPACER, 3/8" X 2.63" X 2.63", W/ .75" DIA HOLE

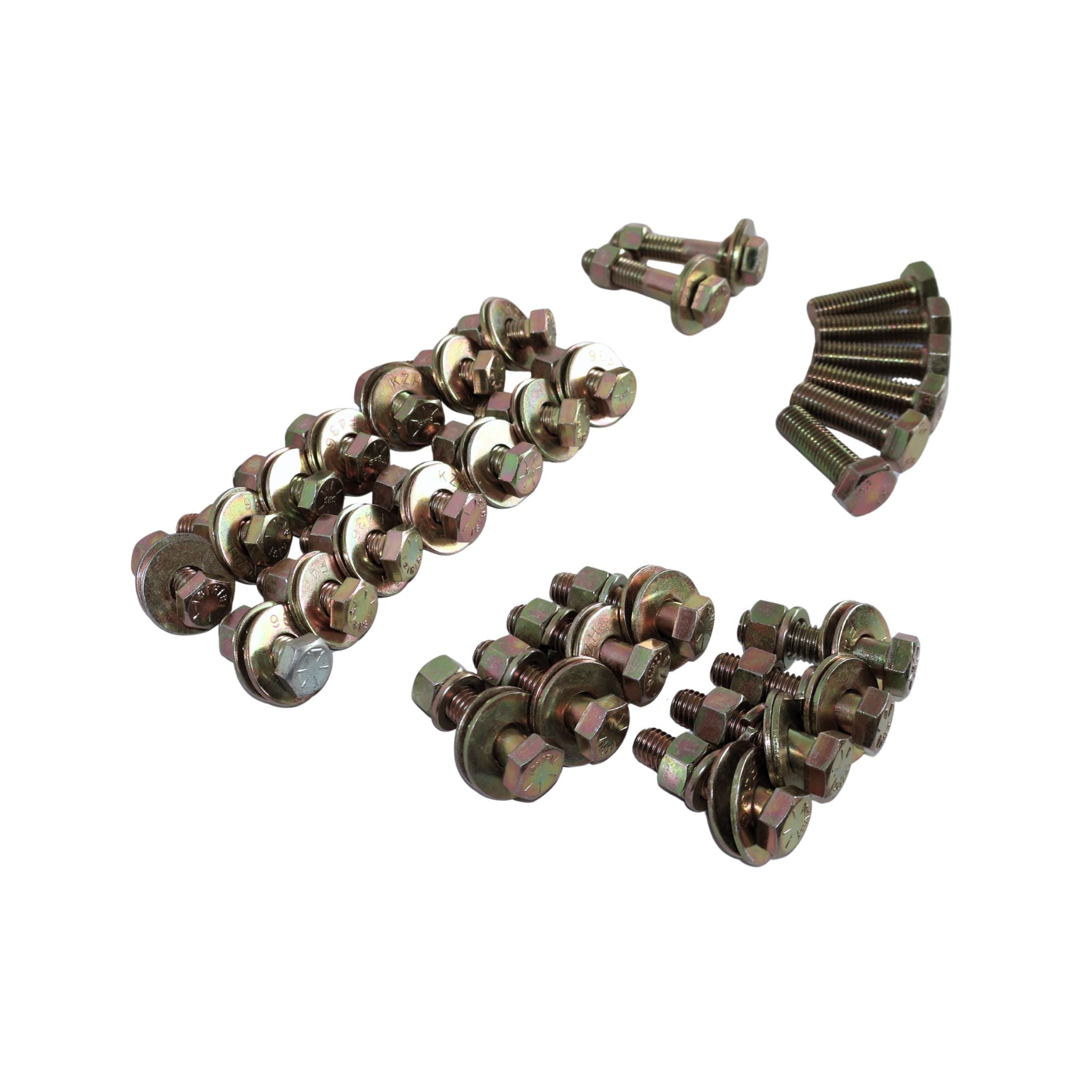

(14) 10-00016-01 – 1/2-13 X 1 1/2 HEX BOLT, GRADE 8, YELLOW ZINC
(8) 10-00016-02 – 1/2-13 X 2 HEX BOLT, GRADE 8, YELLOW ZINC
(2) 10-00016-04 – 1/2-13 X 2 1/2 HEX BOLT, GRADE 8, YELLOW ZINC
(44) 10-00005-01 – 1/2" FLAT WASHER, ZINC FINISH, STEEL
(22) 10-00006-01 – 1/2" LOCK WASHER
(22) 10-00009-01 – 1/2-13 HEX NUT (COARSE)
(6) 10-01978 – M14-2 X 45MM HEX BOLT, GRADE 10.9, YELLOW ZINC
